The Toshiba Portege 3110CT Info Dump
Manuals
Toshiba Software
Installing other operating systems
Hardware
- Intel Mobile Pentium II 300MHz CPU (1.6v)
- 64Mb 60ns SDRAM onboard (expandable to 192Mb using 140-pin microDIMM)
- 10.4" TFT screen (running at 800x600)
- 2Mb Trident Cyber 9525 64 bit video card
- 6.4Gb 2.5" UDMA3 hard disk
- 2x USB v1.0 ports (one on notebook, one on port replicator)
- 32 bit Cardbus Type I/II PC Card slot
- ESS (SoundBlaster Pro compatible) 16 bit stereo sound card
- Onboard K56flex modem
- 4Mbps/115Kbps IrDA 1.1 port
- 10/100 NIC (on port replicator)
- 66MHz PCI bus v2.1
- Port replicator (10/100 NIC, serial, parallel, video, USB, PS/2, audio, power)
- 30 watt external power brick
- Weight 3.1 lbs / 1.32 Kg with battery
- Size 10.1" x 8.6" x 0.8" / 257mm x 218mm x 20.3mm
Configuration
Forgotten the poweron password? There is a simple hardware dongle which you can build for the parallel port (so you need the port replicator) to bypass the power-on password. Wire a 25 pin serial/parallel port plug as follows:
| Pins |
|---|
| 1-5-10 |
| 2-11 |
| 3-17 |
| 4-12 |
| 6-16 |
| 7-13 |
| 8-14 |
| 9-15 |
|
|
|

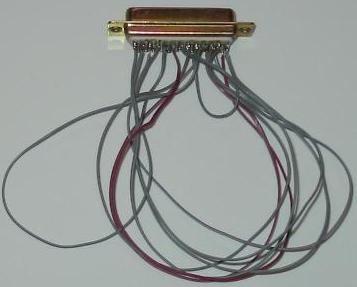

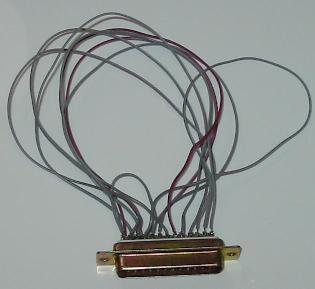

Yes this really works - I have used it myself on a cast-off Toshiba Portege 3110CT (see photos above). This will BYPASS the password(s), not remove them. To remove them, you will need to use the Toshiba DOS or Windows software. See the User Manual for full details of doing this.
Toshiba used to sell this dongle - read the Toshiba note
